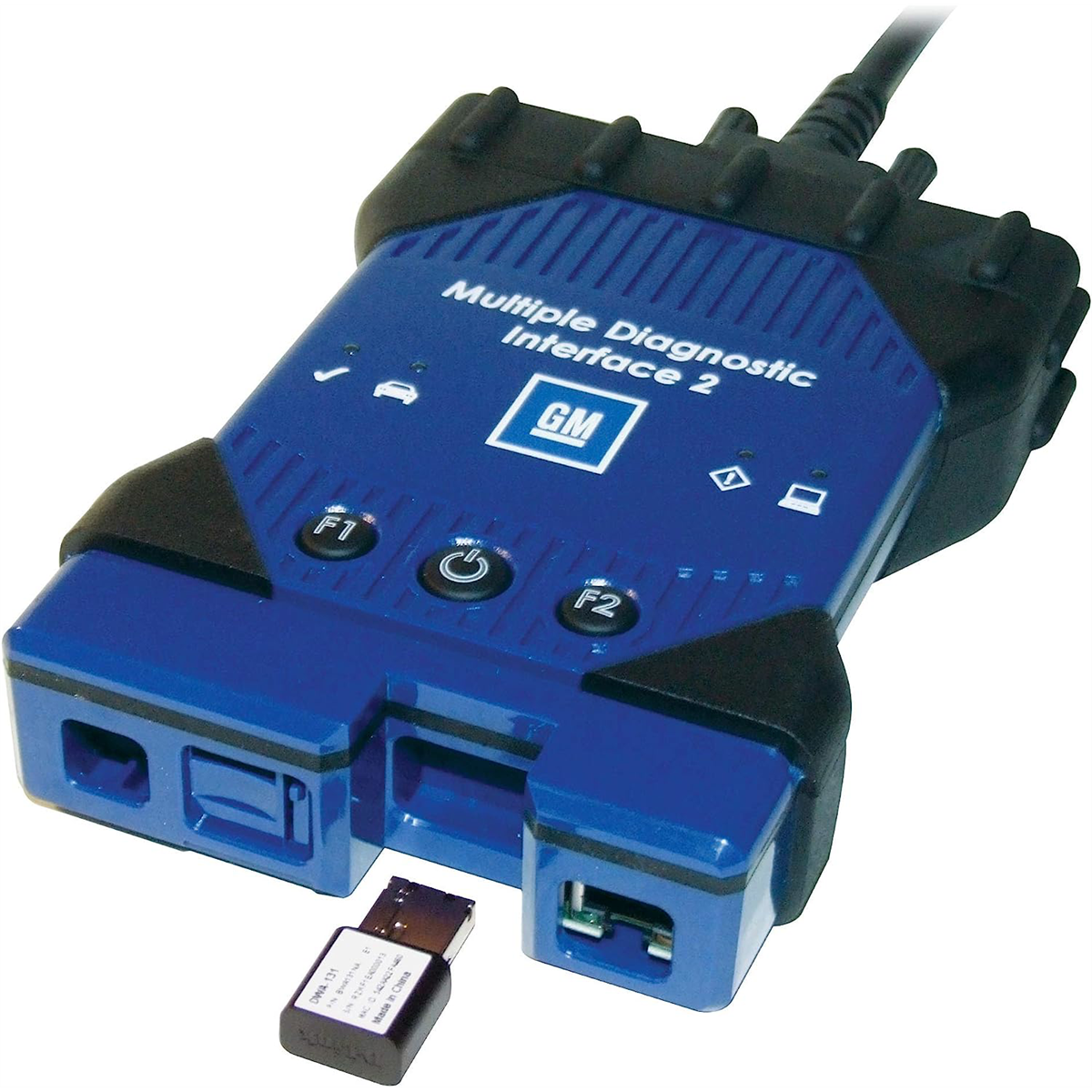

Bosch GM MDI 2 Global Diagnostic Interface Acdelco Tool

Features and Benefits: The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future Global B vehicles. The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming applications: TIS2Web?SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5). Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer programming events. The MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates only using a PC. Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply. The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only connects to the MDI 2. Kit Includes Components: MDI device DLC Cable SAE J1962 10-ft. USB A to USB B Cable Ethernet Cable Two pcs. of D-Link Wireless USB Adapters (Dongles) for wireless connection Service: Multilingual support hotline for hardware problems and questions Exchange process (within the warranty period) when your hardware develops a fault, reducing downtime. 2 year supplier warranty
