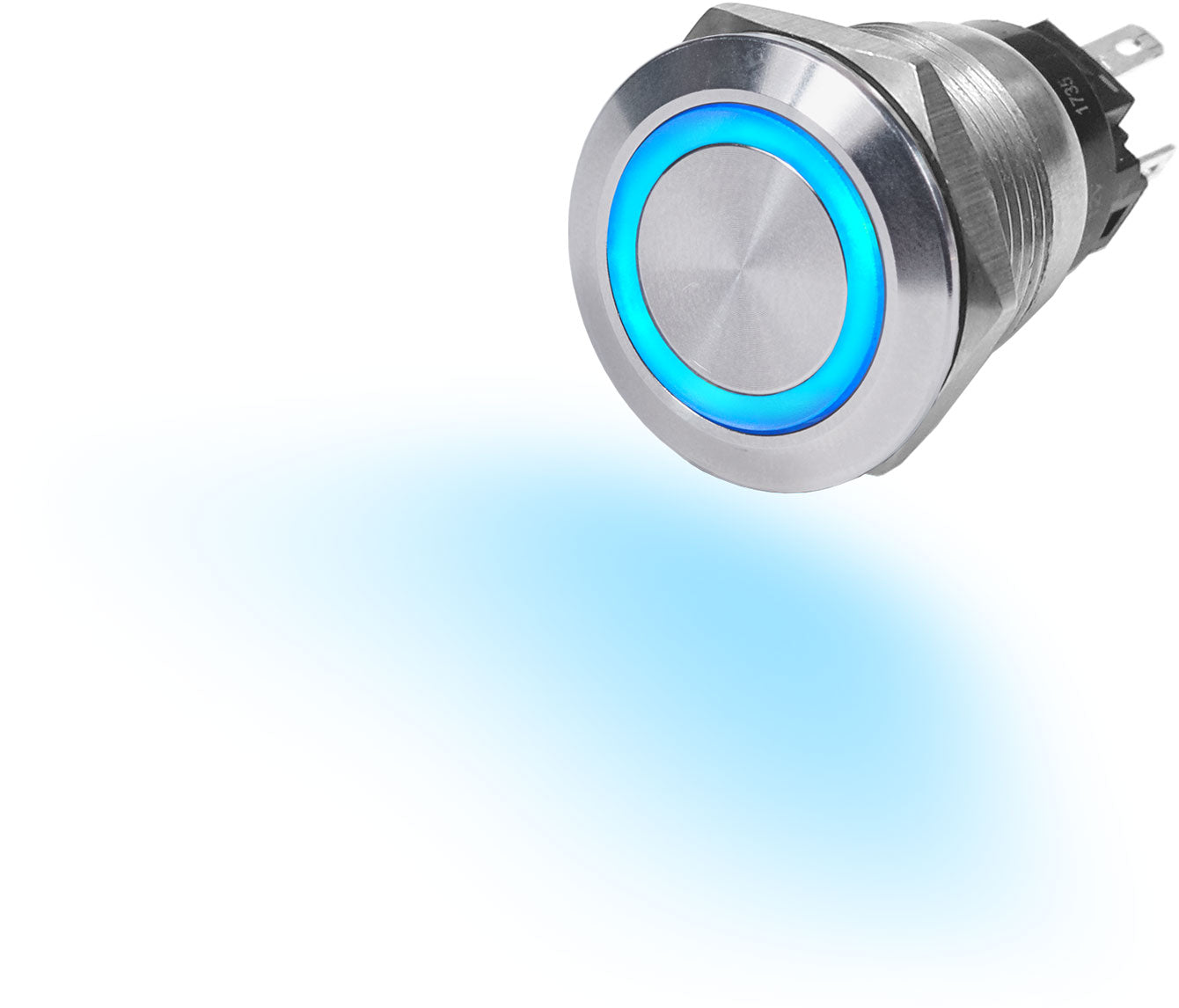

Blue Sea 10A Push Button LED Ring Switch Off-On Blue
Model: 4160-BSS
- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
| Action |
OFF-ON |
| Amperage |
10A @ 12V DC Resistive
3A @ 12V Inductive |
| Nominal Voltage |
12V DC |
| Maximum LED Operating Current |
20mA |
| Minimum Operating Temperature |
-10° C |
| Maximum Operating Temperature |
70° C |
| Minimum Storage Temperature |
-55° C |
| Maximum Storage Temperature |
85° C |
| Illumination |
Independent — Separate contacts for LED power |
| Max Panel Thickness |
0.31in (7.87 mm) |
| Mounting Hole |
¾" (19mm) |
| Switching Cycles |
40,000 |
| Termination |
5 — 0.110inch Quick Connect terminals |
